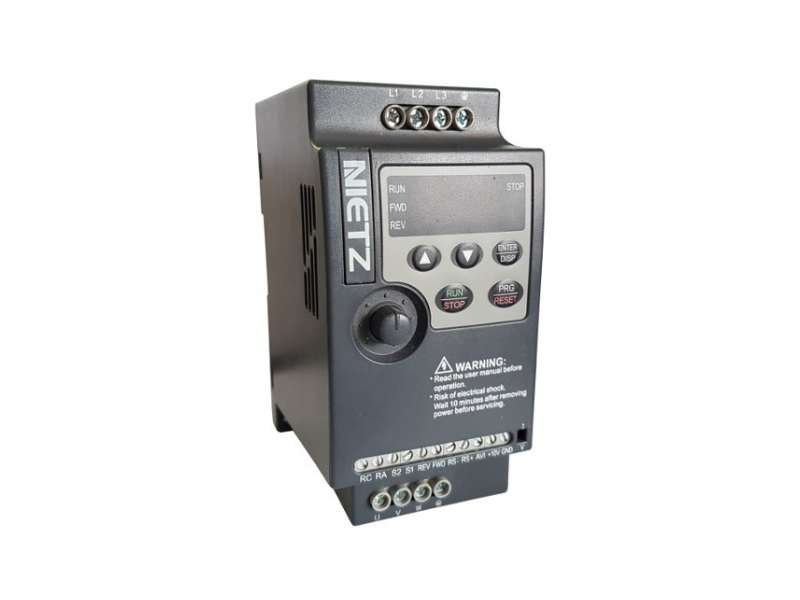

VARIATEUR DE VITESSE 1.5 KW 3ph 380V
VARIATEUR DE VITESSE NEZZAR (Nietz)
Input : 3 PH 380 V 50Hz/60Hz
Output : 3PH 380 V 4. 0A 150% 60S
Fréq Rang: 0.1-400Hz 1.5kw
GW : 0.9KG
| Items | specification | |
| Control Specifications | Output Frequency Range | 0.10Hz～400.00Hz |
| Frequency Setting Resolution | Digital input: 0.1Hz, analog input: 0.1% of maxium output frequency | |
| Output Frequency Accuracy | 0.1Hz | |
| V/F Control | Setting V/F curve to satisfy various load requirements. | |
| Torque Control | Auto increase: auto raise torque by loading condition; Manual increase; enable to set 0.0～20.0% of raising torque. | |
| Multifunctional Input Terminal | Four multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions. | |
| Multifunctional Output Terminal | 1 multi-function output terminals for diaplaying of running, zerospeed, counter, external abnormity, program operation and other information and warnings. | |
| Accleration/ deceleration Time Setting | 0～999.9s acceleration/deceleration time can be set individually. | |
| Other functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function (MODBUS) | |
| Frequency Setting | Analog input: 0 to 10V, 4 to 20mA can be selected; Digital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN. Note: AV1 terminals can be used to select an analog voltage input (0-10V) and an analog current input (4-20mA) through the switch J2. | |
| Multi-speed | Four multifunction input terminals, 15 section speed can be set. | |
| Automatic voltage regulation | Automatic voltage regulation function can be selected. | |
| Counter | Built-in 2 group of counters | |
| Protection/Warning Function | Overload | 150%, 60 second (Constant torque) |
| Over Voltage | Over Voltage Protectation can be set. | |
| Under Voltage | Under Voltage protection can be set. | |
| Other Protections | Output shortcircuit, over current, an parameter lock and so on. | |
| Environment | Ambient Temperature | "-10℃ to 40℃ " (non-freezng) |
| Ambient Humidity | Max. 95% (non-condensing) | |
| Altitude | Lower than 1000m | |
| Vibration | Max. 0.5G | |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP 20 | |
| Installation | Wall-mounted or standard 35MM rail mounting | |
