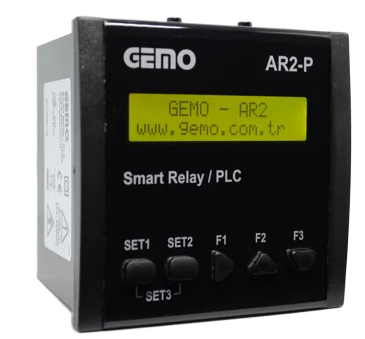

96mm x 96mm front size

Free charge of Ladder Logic with Editor GUI running on PC, “GEMO LADDER EDITOR”; programming, simulation, download.

256 lines, 5 contact column, 1 coil column

Rising / Falling Edge option for contacts

Up to 24 Discrete Inputs, built-in filter for each input

Up to 17 Discrete Outputs

32 Timers (11 modes, 9 time bases)

2 Timer Ticks (Event Counting)

32 Counters (16 bits, Up/Down)

32 Counter Comparators (with Offset feature)

2 Fast Input Counters

2 Independent State Machines (Internal Timer)

3 Front Panel F Keys, with built in filter for each

48 Auxiliary Relays

16 Analog Comparators (with hysteresis)

Up to 4x0-10V Analog Inputs

Up to 2 x PTC Temperature Sensor Input

32 Run Time Screens with internal timer; each having 4 sub screens

Welcome screen with 4 sub screens

3 Level user programmable menu system

4 Password contacts

4 Configuration contacts

Real Time Clock-

Weekly / Yearly Alarms (RTC for option)

RS-485 port to connect to extension modules

Communicates with a MOSBUS RTU Master via AR2 MODBUS Gateway (AR2-S-24VDC-MB1)

Scan time < 10msec.

2x16 character back-light LCD display

100-230VAC
